BLUE STEEL PACKING STRAPS
|
|

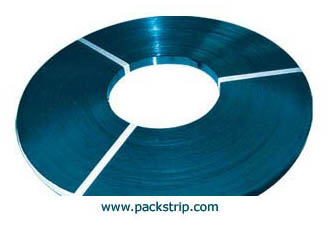

Linear Ribbon Steel Strips |

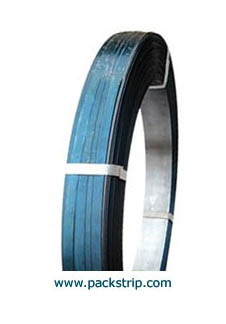

Oscillated Steel Straps |
Application:The metal band is made from ordinary carbon structured
steels viacold-rolled,electric heat and blue.It is applicable for bunlding
and packing of wood,paper,cotton spinning,baling hoops,chemical indutry
machinery and so on.
Mechanical lproperties:
Tensile strength ¦Òb¡Ý60kg/mm(MPa)¡Ý600,elongation ¦Ä5¡Ý3%.
The higher tensile strenght is the kind of
80kg/mm(Mpa).
Weight/unit:2 or 3 small coils per bundle,net wight50¡À2kg
.
packing:2 or 3 small coils per bundle,Inner diameter is
200-300mm.
Packing:1.Inner is protect humidity-proof wax paper.Medium is
plastic film.outer is sackcloth packing.2.Inner and outer are tile edge
compound paper packing.The cargo will be delivered in pallets,each pallet
is about one metric ton.Besides the above sizes,other particular
spexifications,properties and packing can also be manufactured as per
customers' orders.
BWG |
thickness |
width |
inch |
mm |
inch |
mm |
18 |
0.049 |
1.2 |
3/4-1 |
19-32 |
19 |
0.042 |
1.0 |
3/4-1 |
19-32 |
20 |
0.035 |
0.90 |
3/4-1 |
19-32 |
21 |
0.032 |
0.80 |
3/4-1 |
19-32 |
22 |
0.028 |
0.70 |
5/8-1 |
16-19 |
23 |
0.025 |
0.65 |
5/8-1 |
16-19 |
24 |
0.022 |
0.60 |
5/8-3/4 |
16-19 |
25 |
0.020 |
0.50 |
5/8-3/4 |
16-19 |
26 |
0.018 |
0.45 |
1/2-5/8 |
12.7-16 |
27 |
0.016 |
0.40 |
1/2-5/8 |
12.7-16 |
28 |
0.014 |
0.36 |
1/2-5/8 |
12.7-16 |
Blue
Steel Packing Strips is made from ordinary carbon structured and high
quality carbon structured steels via cold-rolled,electric heat and blue.It
is applicable for bundling and packing of wood,paper,cotton
spinning,glass,stone,steels,weld tube and so on large
objects. [Mechanical properties](1)Ordinary blue steel strips:tensile
strength §Ò§î¡Ý58-70kg/mm2(MPa)¡Ý580-700,elongation:¦Ä5¡Ý3-5% (2)High quality
blue steel strips:high intensity,good capability,bearing impact.tensile
strength §Ò§î¡Ý80-90kg/mm2(MPa)¡Ý800-900,elongation:¦Ä5¡Ý5-10%
Sackcloth
packing of blue
strips
[Specification] BWG28*1/2''¡¢5/8''£¨0.36mm*12.7mm¡¢16mm£© BWG27*1/2''¡¢5/8''£¨0.40mm*12.7mm¡¢16mm£©
BWG25*1/2''¡¢5/8''¡¢3/4£¨0.50mm*12.7mm¡¢16mm¡¢19mm£© BWG24*5/8''¡¢3/4''£¨0.60mm*16mm¡¢19mm£© BWG23*5/8''¡¢3/4''£¨0.65mm*16mm¡¢19mm£© BWG22*3/4''¡¢5/4''£¨0.70mm*19mm¡¢32mm£© BWG21*3/4''¡¢5/4''£¨0.80mm*19mm¡¢32mm£© BWG20*3/4''¡¢5/4''£¨0.90mm*19mm¡¢32mm£©
Tile edge compound paper packing of blue xtrips The
above specification,we can priduce as per
customers'request. [Packing]:2 or 3 small coils per bundle(inner
diameter is 200mm,300mm),weight 50¡À1kg,20 bundles/pallet,each is about one
metric ton.Inner is protect hummidity-proof wax paper.Medium is plastic
film.Outer is sackcloth and compound paper packing.Delivered in Wooden
pallets or iron pallets,we can pack as per customers' orders. [Product
performance standard]:YB/T025-92
PAINTBAKED STEEL PACKING STRIPS
is made from ordinary carbon structured and high quality carbon
structured steels via cold-rolled,It applys to pack the ware which is in
the biggish humidity ground and outdoor long-time.
[Mechanical
properties](1)Ordinary steel :tensile strength
§Ò§î¡Ý58-70kg/mm2(MPa)¡Ý580-700,elongation:¦Ä5¡Ý3-5%
(2)High quality
steel:tensile strength§Ò§î¡Ý80-90kg/mm2(MPa)¡Ý800-900,elongation:¦Ä5¡Ý5-10%
[Specification]
BWG28*1/2''¡¢5/8''£¨0.36mm*12.7mm¡¢16mm£©
BWG27*1/2''¡¢5/8''£¨0.40mm*12.7mm¡¢16mm£©
BWG25*1/2''¡¢5/8''¡¢3/4£¨0.50mm*12.7mm¡¢16mm¡¢19mm£©
BWG24*5/8''¡¢3/4''£¨0.60mm*16mm¡¢19mm£©
BWG23*5/8''¡¢3/4''£¨0.65mm*16mm¡¢19mm£©
BWG22*3/4''¡¢5/4''£¨0.70mm*19mm¡¢32mm£©
BWG21*3/4''¡¢5/4''£¨0.80mm*19mm¡¢32mm£©
BWG20*3/4''¡¢5/4''£¨0.90mm*19mm¡¢32mm£©
The
above specification,we can produce as per customers'request.
[Packing]The product include rope wound and ribbon
wound(continuous,apply to pack machinery),net weight 45¡À2kg.Inner is
protect humidity-proof wax paper.Medium is plastic film.Outer is sackcloth
and compound paper packing.Delivered in wooden pallets or iron
pallets.Rope wound steel strips:weight per pallet is 1 metric ton,ribbon
wound steel strips:wigth per pallet is 0.9 metric ton.
[Product
performance standard]QB/T01-2002.We can also manufacture as per customers'
quality standard orders.
|
